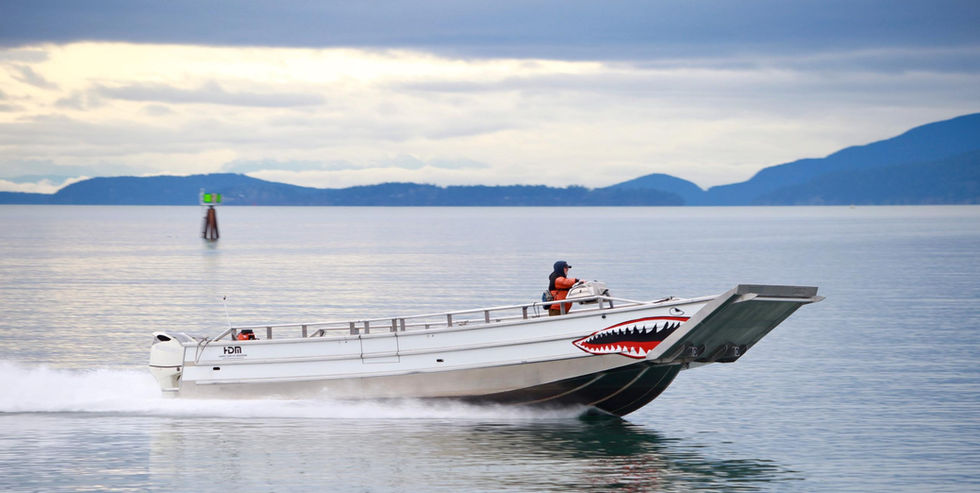

FastTrack Build 4011 Landing Craft

Introducing the FastTrack Build version of our 4011 Maxgate landing craft - the ideal vessel for those who demand reliability, performance, and innovation. Our landing craft boasts our patented Maxgate technology, which provides unmatched ease of access, fast loading and unloading, and maximum safety. This hull comes fully welded and is ready to install power and systems. We understand that flexibility and cost savings are essential, which is why we are offering this product for you to do the installation of systems on your own terms. With the latest in our patented technology, you can trust that this landing craft is designed to perform at the highest level, no matter what the task.

Standard 4011 Fastrack Includes:

Features:

  • Fully welded hull, Ready for power, Ready for systems

  • 40’ x 11’ Maxgate landing craft hull, measured from top of Maxgate door to engine mounting bracket

  • Midship Fixed Control Console, Blank, Ready for your systems to be installed*

  • Acceptable Power range 200HP to 900HP

  • Maxgate bow door opening 7’ 5” wide with Maxgate Spikes

  • Hydraulics fully plumbed, includes Hydraulic 12v Power Unit, and Dash Controls, Ready for you to hook up power.

  • 200 USG fuel tank ready to plumb. Twin 5/8" Tank vents, 2" Fill, and Five Port Fuel Drawtube Plate.

  • Battery tray for Two Group27 Cranking Batteries, One House Bank and One Maxgate Battery

  • 3x 15x24 water-tight deck hatches

  • Jaxcab embedded deck rails with 8 stainless steel rail pad eyes

  • Deck Safety Rails

  • 6x weld on aluminum cleats

  • 3x water-tight bulkheads​​

Upgrade To Maxhelm 4011 Fastrack:

Includes:

  • Replace Midship Fixed Console with Our Patented Maxhelm Mobile Console

  • Adds Required Twin Deck Safety Rails for attachment of Maxhelm, allows movement of console to either side or forward and aft as the mission requires

  • Maxhelm Mobile Console, Blank - Ready for your systems, with Heavy Duty Stainless Steel Rail Clamps

  • Two 2" loom swivel attachments installed in the Maxhelm and in a Deck Venting Box for easy access to connect to the Engine and other Controls. Loom is not included

Price FOB Bellingham, Washington: $183,490

Price FOB Bellingham, Washington: $172,490

Order Yours Today

Hull Materials:

  • Bottom sheets .250” 5086 H116/ 5083

  • Side sheets .190" 5086 H116/ 5083

  • Transom .250" 5086 H116/ 5083

  • Internal ring frames and bulkheads .190” 5052

  • Keel .5" x 4” 5086

  • Extruded items 6061

  • Decking .160” 5052

Hull Data:

  • Cargo deck length 30’9”

  • Hull width 11’ at midship

  • Cargo deck width 10’ 4” at midship

  • Capacity 7500 pounds

  • Max speed 47 mph
